Insulation Material
Wondery :
SCG Acoustic Ceiling Tile
Acoustic control with good aesthetic appearance and suitable for many types of buildings.
The ultimate goal of room design in habitat or buildings is to create peaceful and functional living spaces. So the factors that need to consider is preventing or controlling in&out disturb noise to achieve the sound solution as required. This Acoustic ceiling insulation materials can help you.
Key Documents & Design Files
Previous slide
Next slide
Product Option
Product Size
| Product Name | Application | Series-Colors | Thickness (mm.) | Width x Length (mm.) | Installation System | Weight (kg./pc.) |
|---|---|---|---|---|---|---|
| SCG Acoustic Ceiling Tile : Wondery | Internal Acoustic Ceiling Tile | Wondery-Splash White (Facing Type Back : Plain or Aluminum Foil Backing) | 20 | Gypsum system(G) 600 x 1200 | T-Bar Space lining | 0.84 |
| Imperial system (F) 605 x 1215 | T-Bar Space lining | 0.86 | ||||
| Metric system (M) 595 x 1195 | T-Bar Space lining | 0.83 | ||||
| SCG Acoustic Ceiling Tile : Wondery | Internal Acoustic Ceiling Tile | Wondery-Sperblack (Facing Type Back : Plain or Aluminum Foil Backing) | 20 | Gypsum system(G) 600 x 1200 | T-Bar Space lining | 1.69 |
| Imperial system (F) 605 x 1215 | T-Bar Space lining | 1.72 | ||||
| Metric system (M) 595 x 1195 | T-Bar Space lining | 1.54 |
Special Property

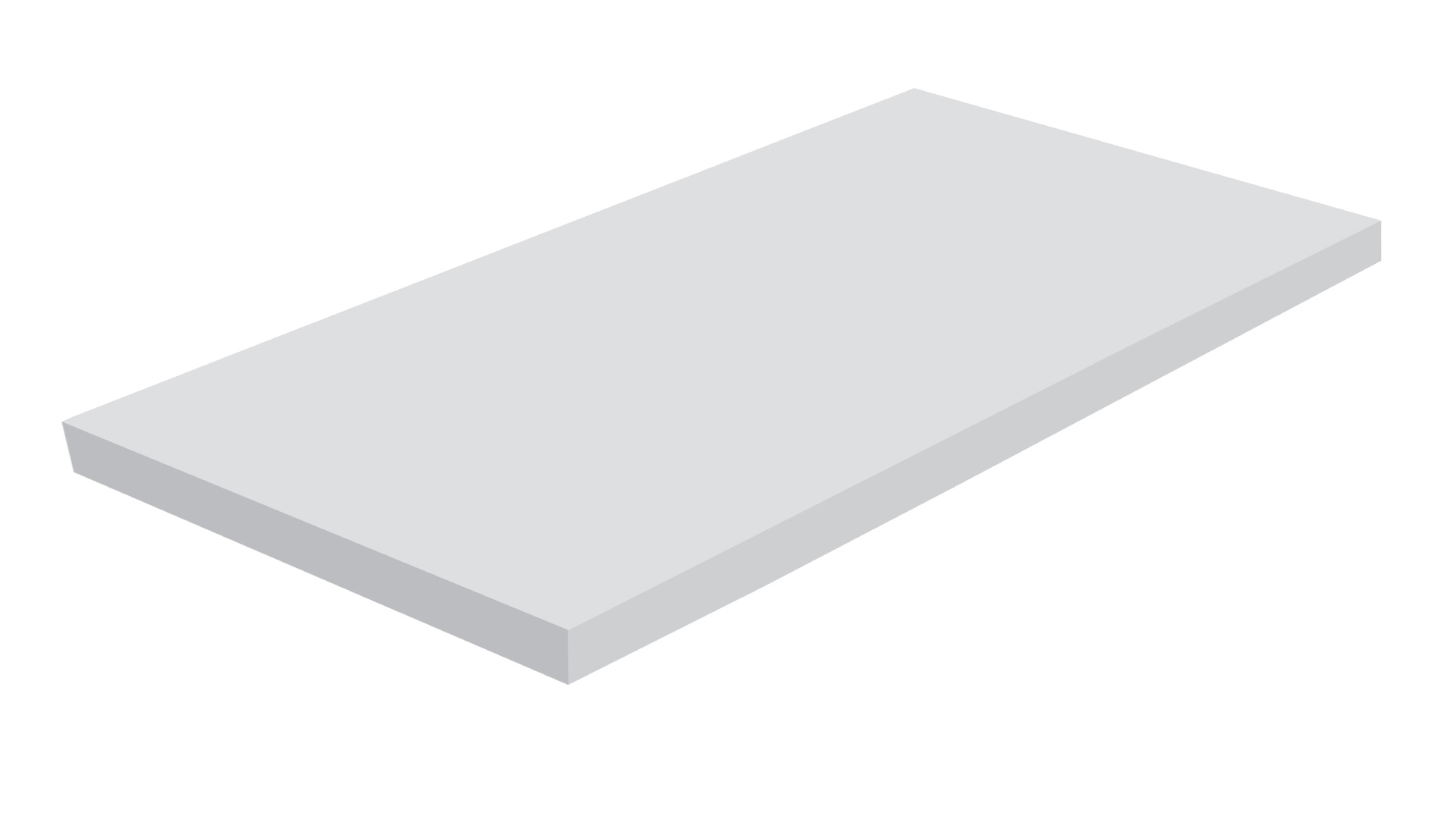

CylenceTM Wondery TM is a non-combustible high rigid glasswool board, laminated with decorative white glass matt facing and 4-edges coated with special white color polymer substance. With an exceptional acoustic performance, It can absorb noise, reduce sound reverberation in the room. SCG Acoustic for Ceiling Tile is available in square edge accompanied with suspended T- Bar ceiling grid both imperial and metric systems. This decorative ceiling tile is specially designed to meet the designer’s need for acoustic control with good aesthetic appearance and suitable for many types of building such as office, shopping center, conference hall, school, hospital, cinema, home theater room and also residential buildings.
Wondery : SCG Acoustic Ceiling Tile
Special Properties
Excellent Sound Absorption
NRC = 0.70 (Noise Reduction Coefficient) SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM offers an excellent performance with NRC up to 0.70 in accordance with ASTM C423. Instead of bouncing sound like other hard surface ceiling board, SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM helps reducing reverberant noise and creates a peaceful atmosphere in the room.
No sagging or Warping
CylenceTM WonderyTM is made from glasswool which has good moisture resistance and shape consistency so it will not sag and warp even in the heat and high humidity condition. SCG Acoustic for ceiling absorption : CylenceTM WonderyTM will maintain their good appearance after installation and keep beautiful feature in overtime.
Elegance
CylenceTM WonderyTM is faced with attractive white texture painted facing so it gives you more fashionable and comfortable visual feeling.
Moisture Control
CylenceTM WonderyTM repel water and moisture which help prolonging performance.
Application Guideline
- Living Room
- Office
- High Rise Building
- Hotel
- Factory
- Green Building

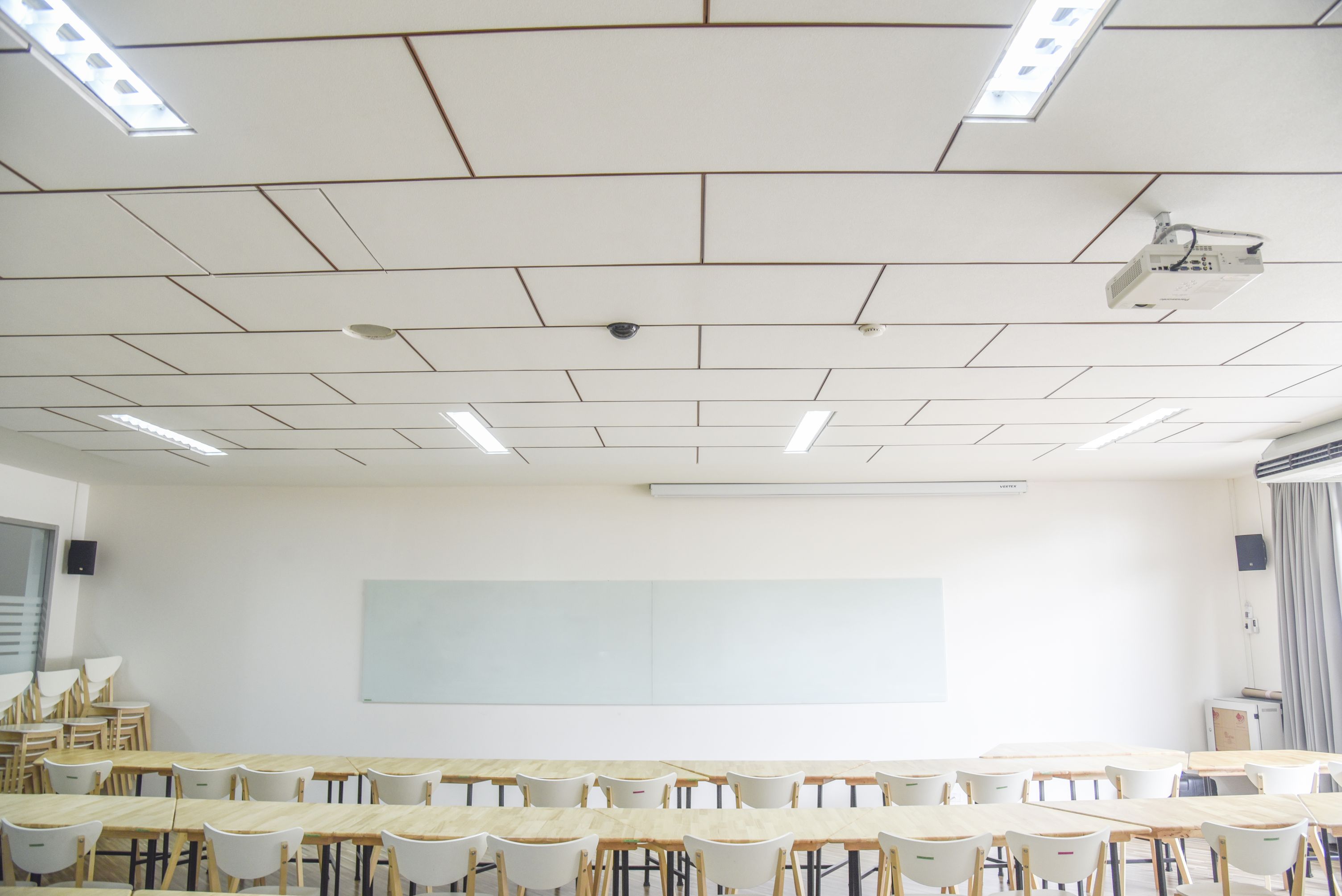

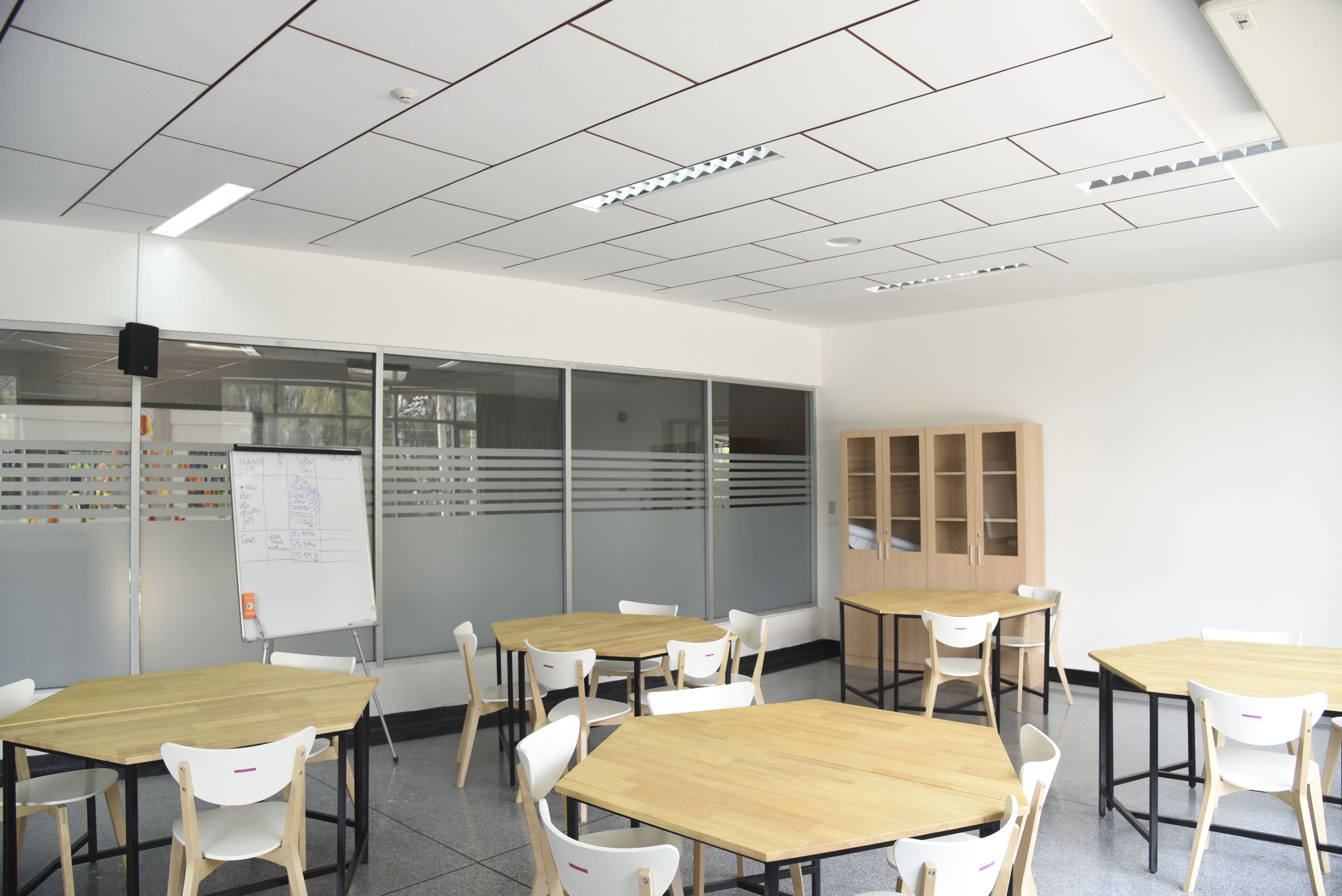

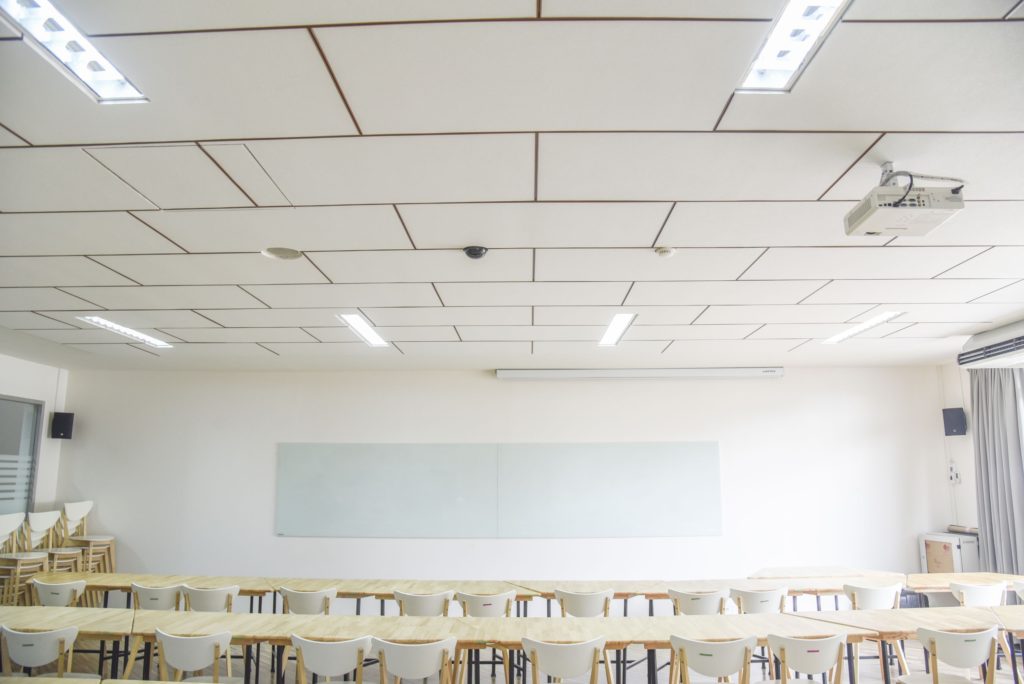

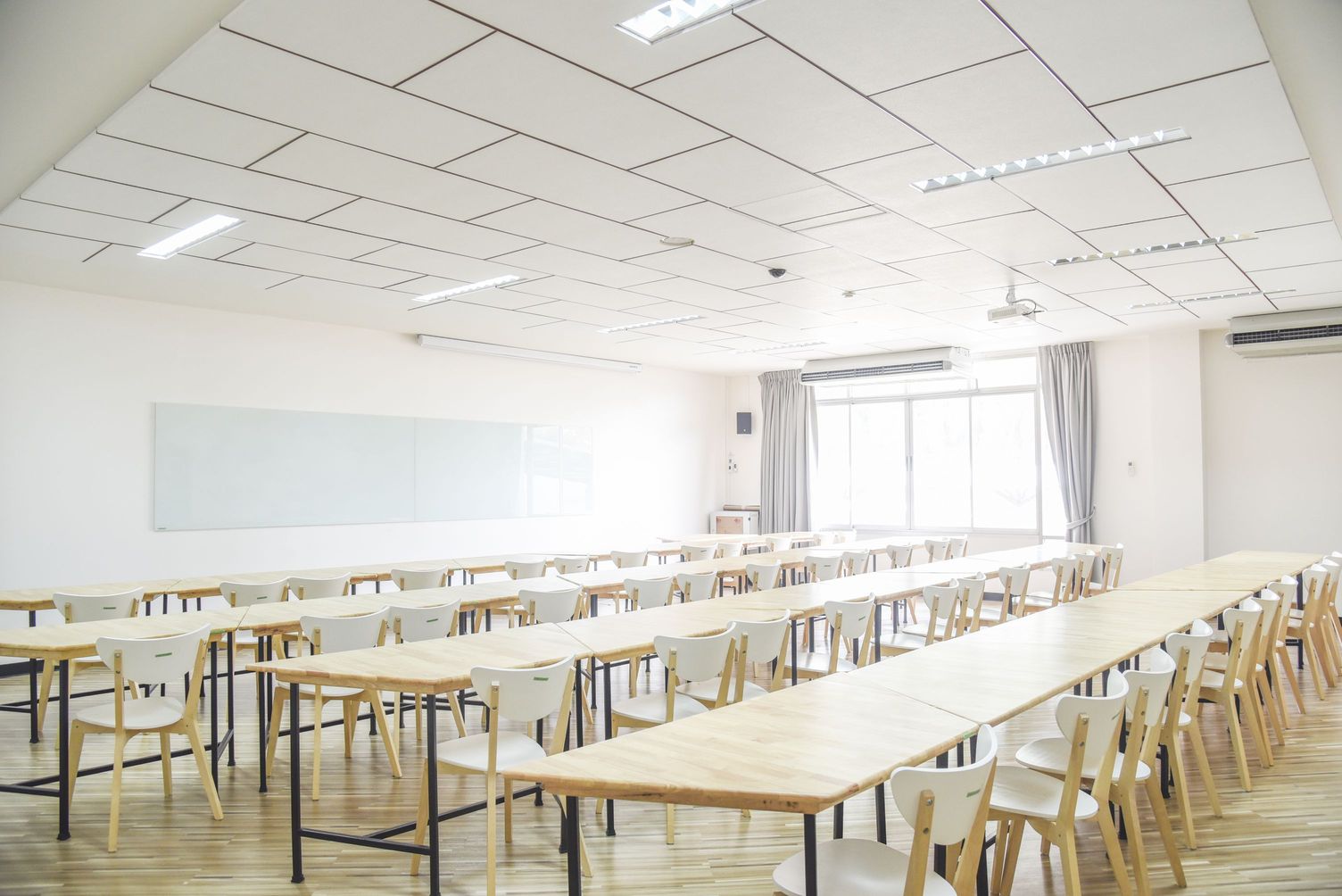

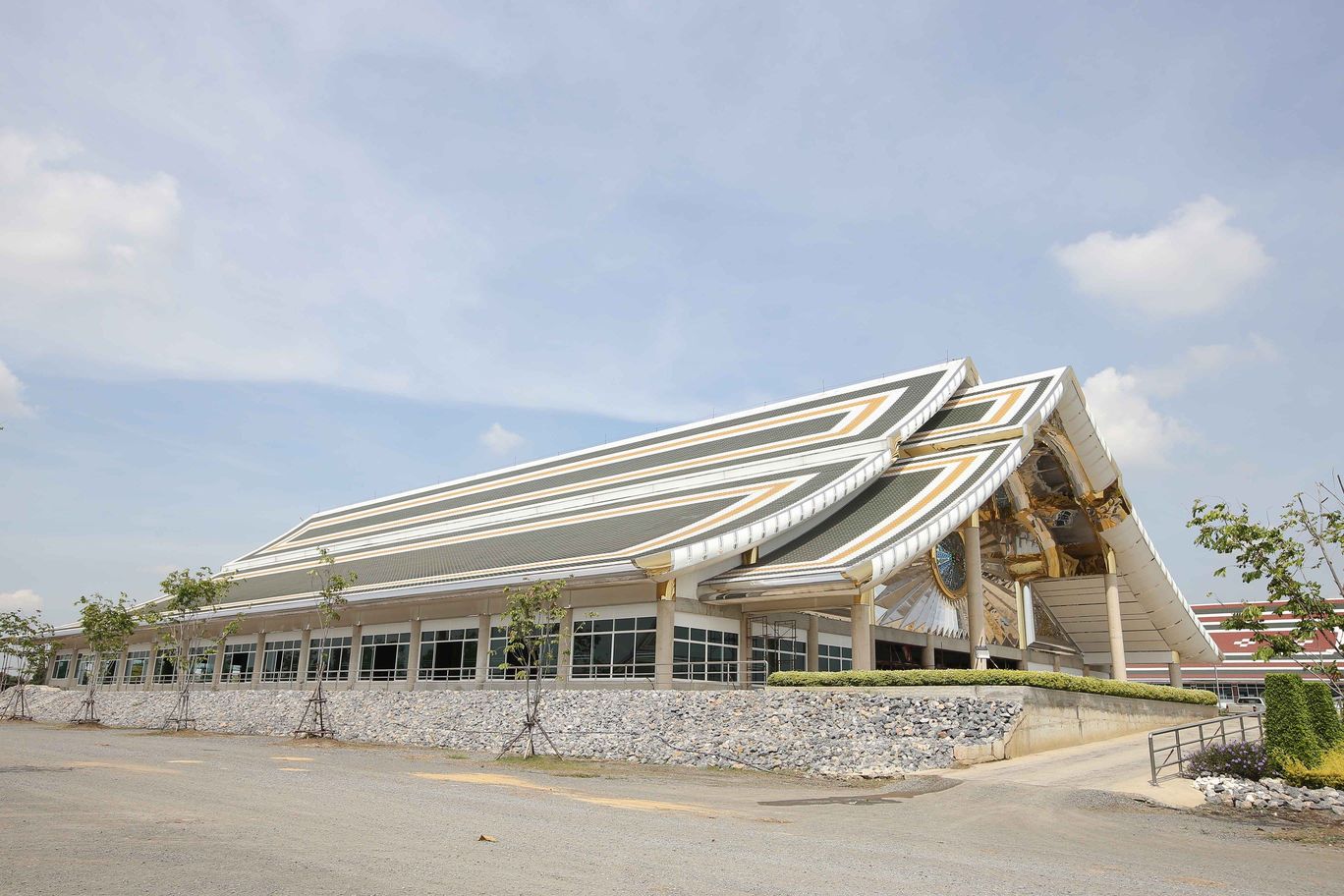

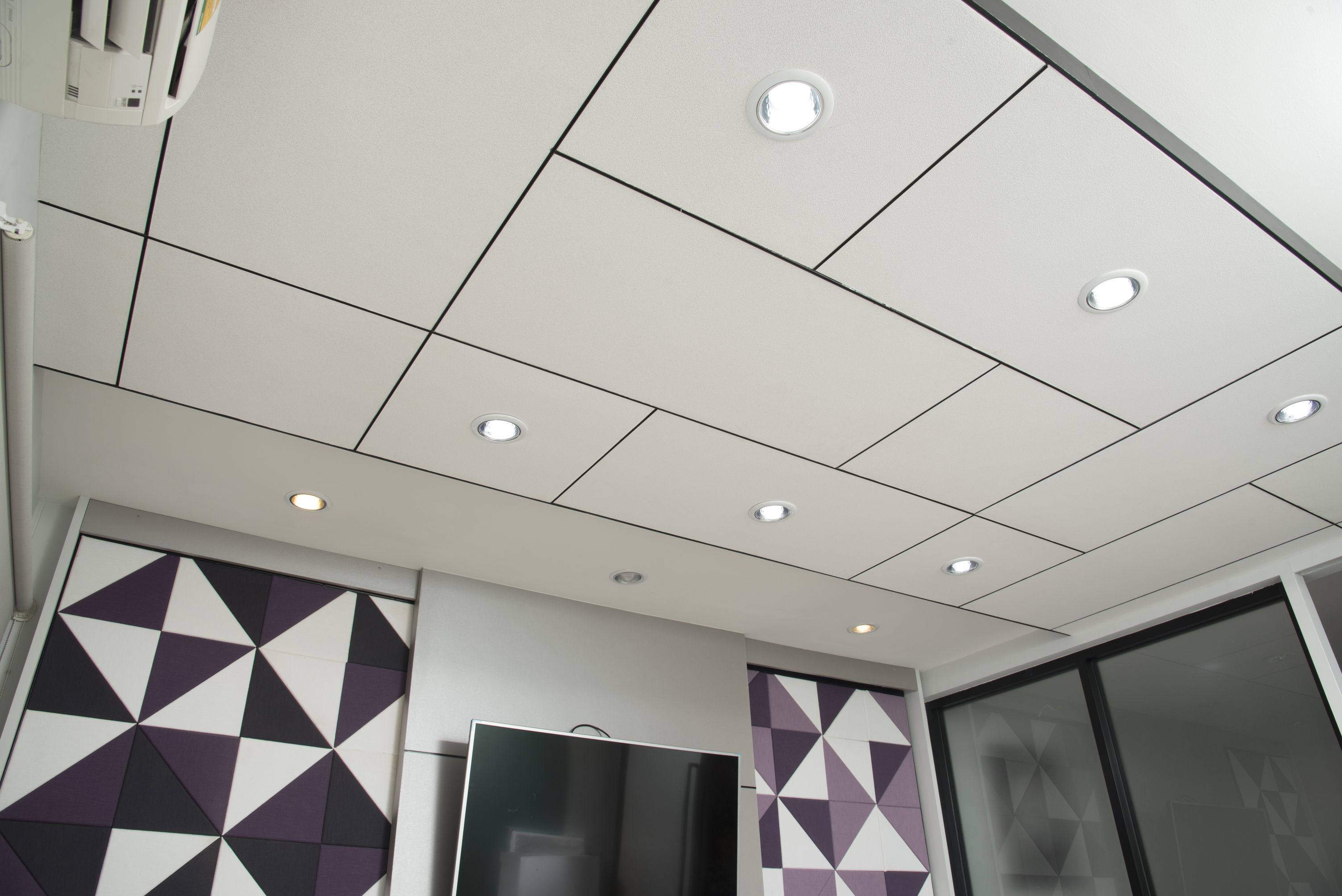

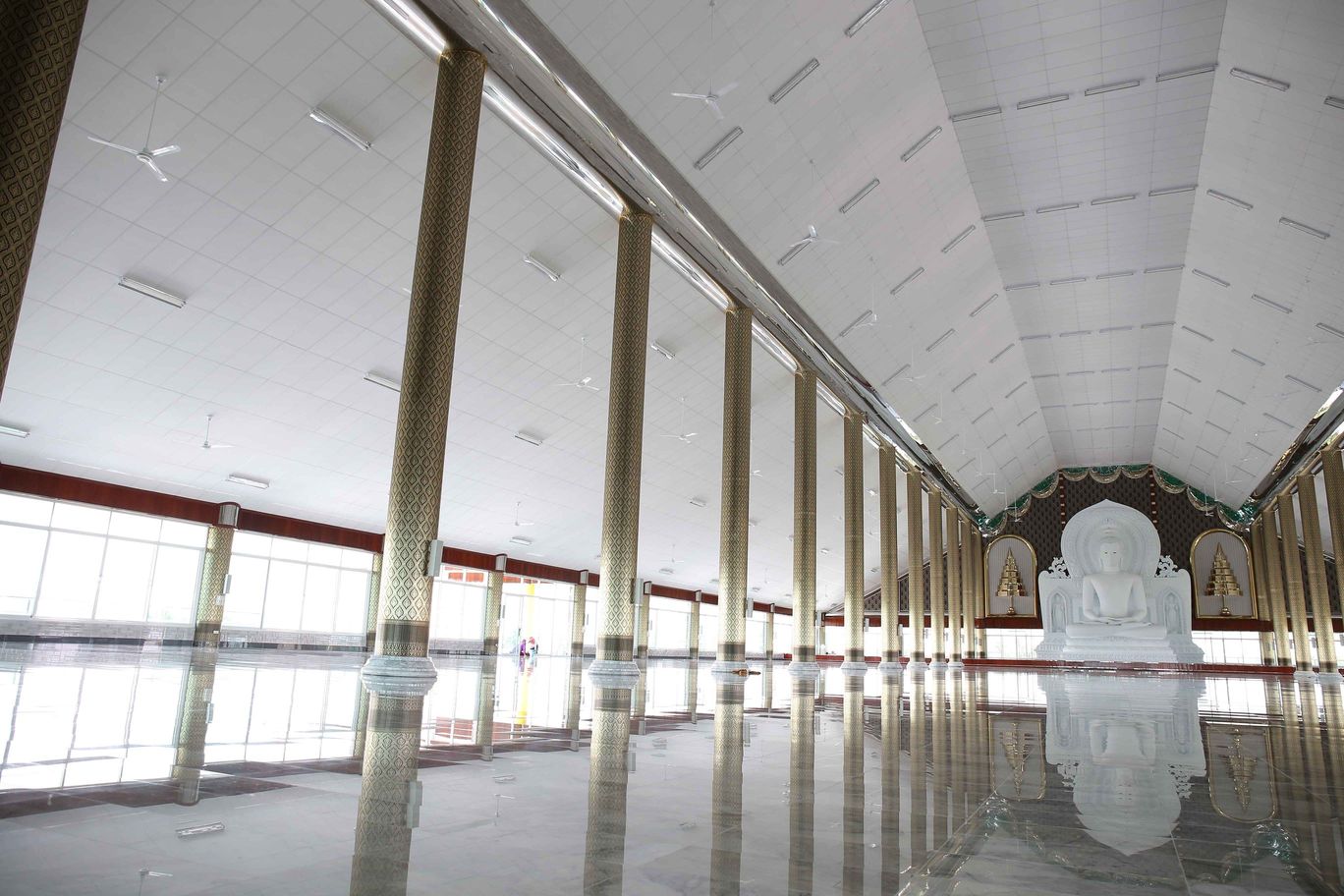

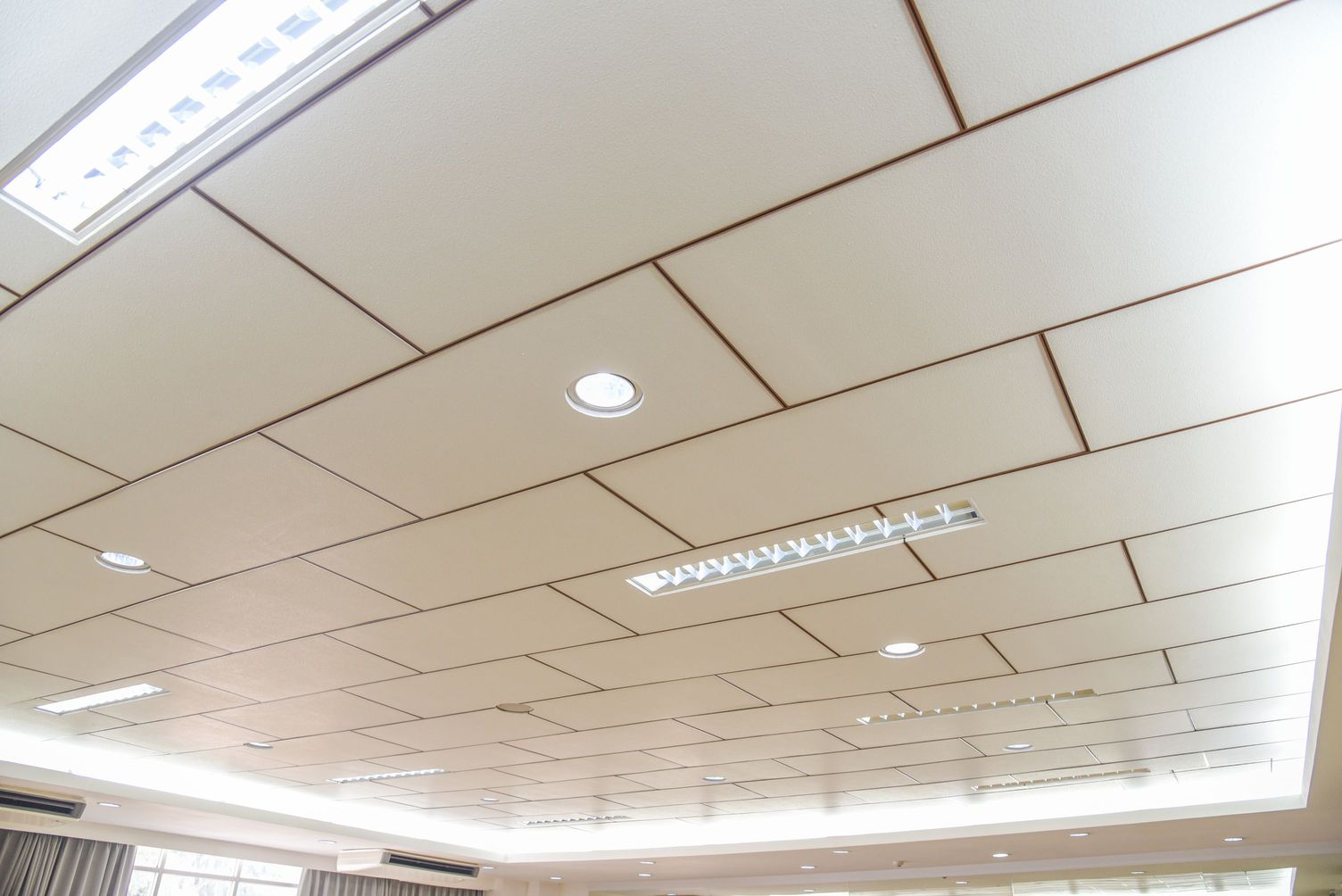

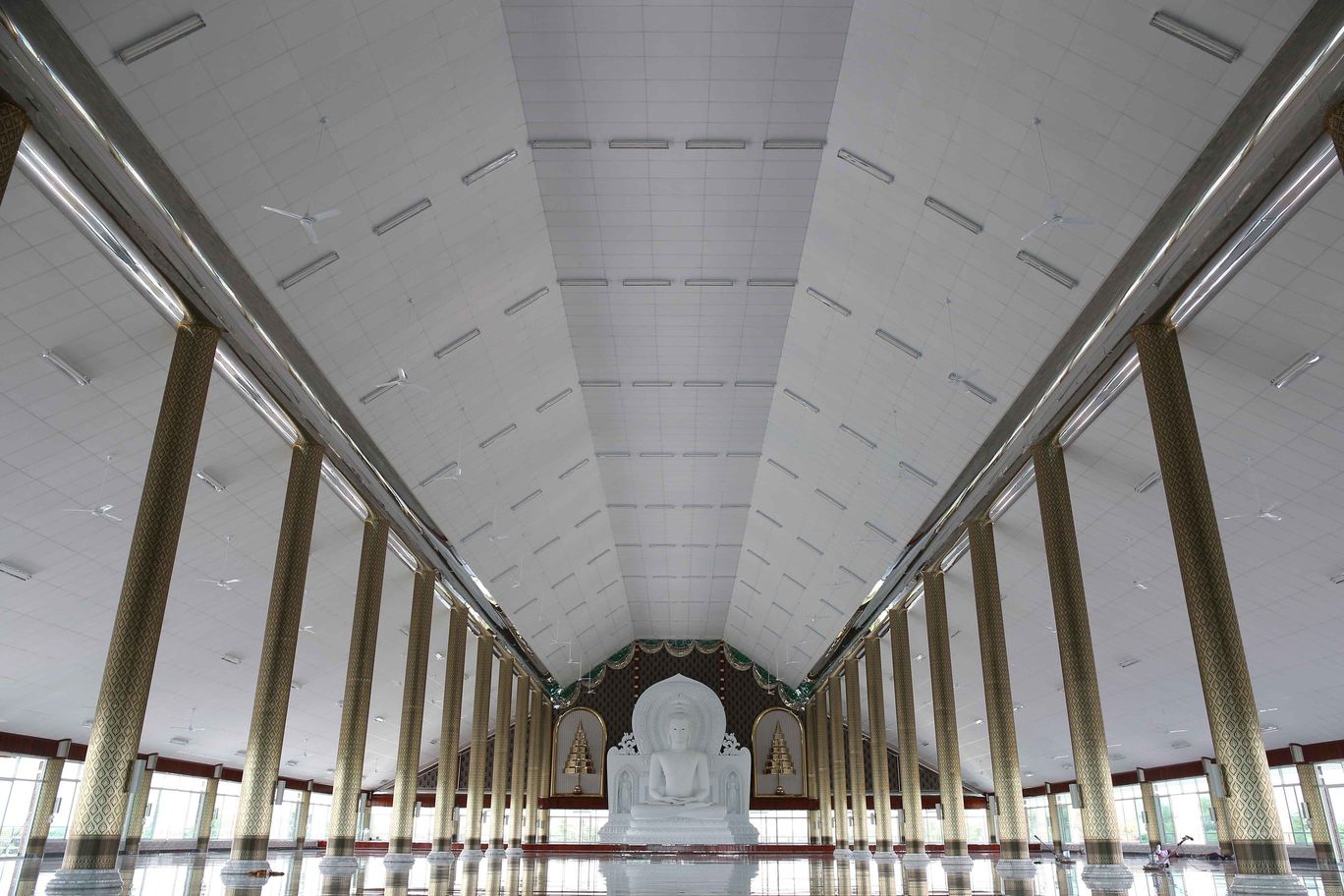

Application Example
Specification & Standard
| Product | Thickness (mm) | Sound Absorption Coefficient (SAC) at 1/3 octave band center frequencies Hz. (ASTM C 423) | NRC | |||||
|---|---|---|---|---|---|---|---|---|
| SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM | 20 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 0.7 |
| 0.04 | 0.22 | 0.65 | 0.97 | 1.01 | 0.93 | |||
Installation
