Fiber Cement Board

Heat Protection System

Energy Efficiency & Living Comfort

  • Install SCG SmartBOARD with SCG C74 Galvanized Frame and SCG U76 Galvanized Frame. Fill the gap between the boards with SCG Insulation Thermacoustic .

Application

One of the many new trends about home is sustainability. Developers and home owners are trying to find the right solution that would improve energy effieciency while providing comfort for the householders. By containing thermal insulation, SCG Heat Protection System effectively keeps buildings properly insulated. It is the right wall solution that constantly keeps interior temperatures at a comfortable level, thereby delivering a new level of living comfort and allowing home owners to save on energy bills.

Application Guideline

  • Healthcare Facilities
  • Office
  • Multifamily Residential Buildings
  • Bedroom
  • Hotel
  • Factory
  • High Rise Building
  • Green Building

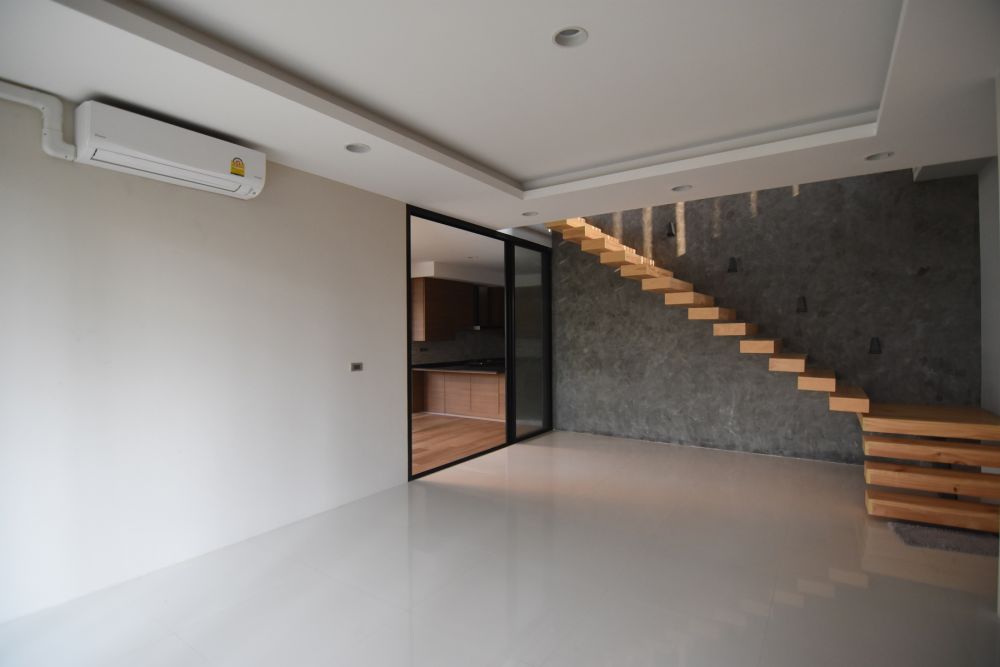

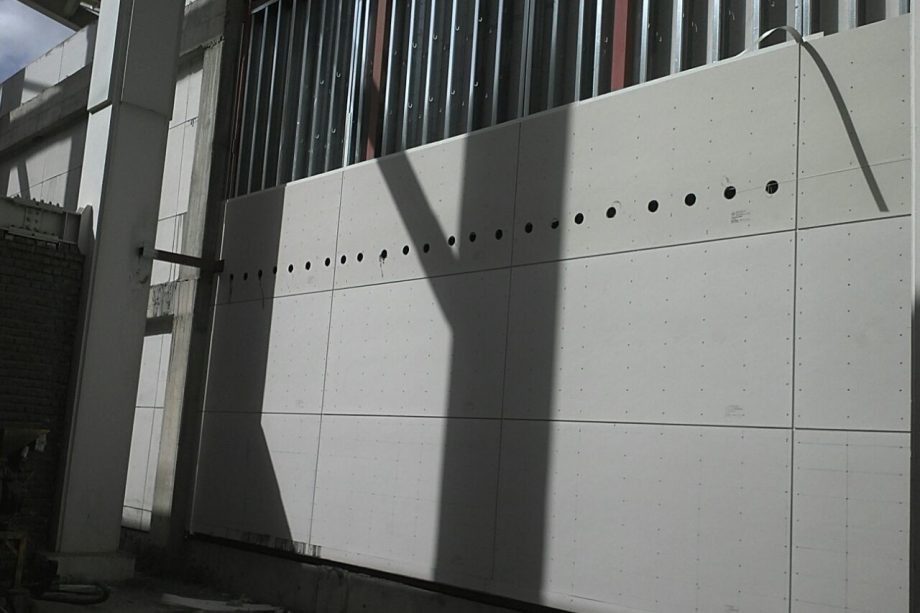

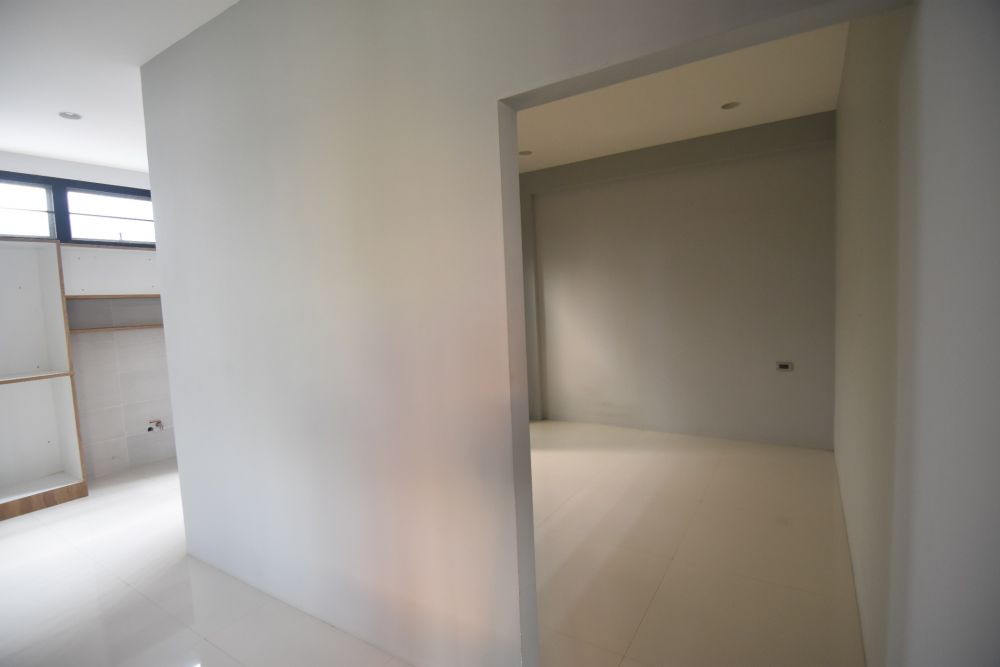

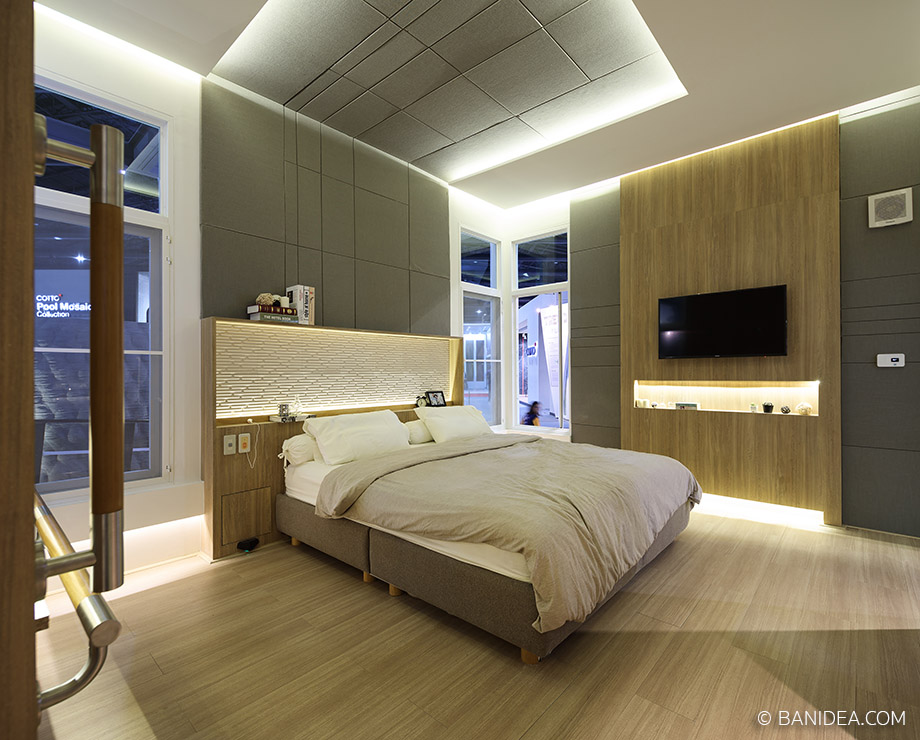

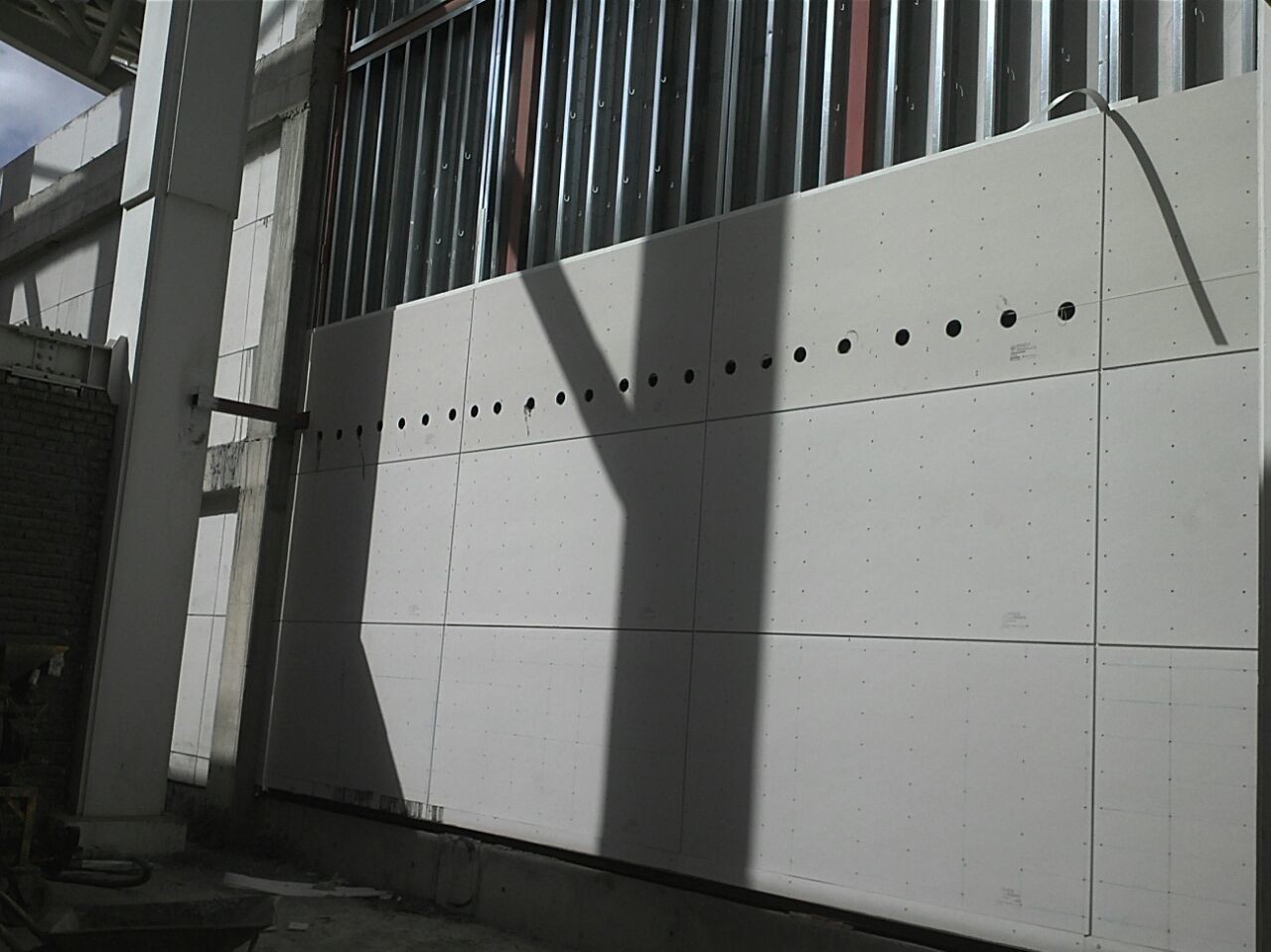

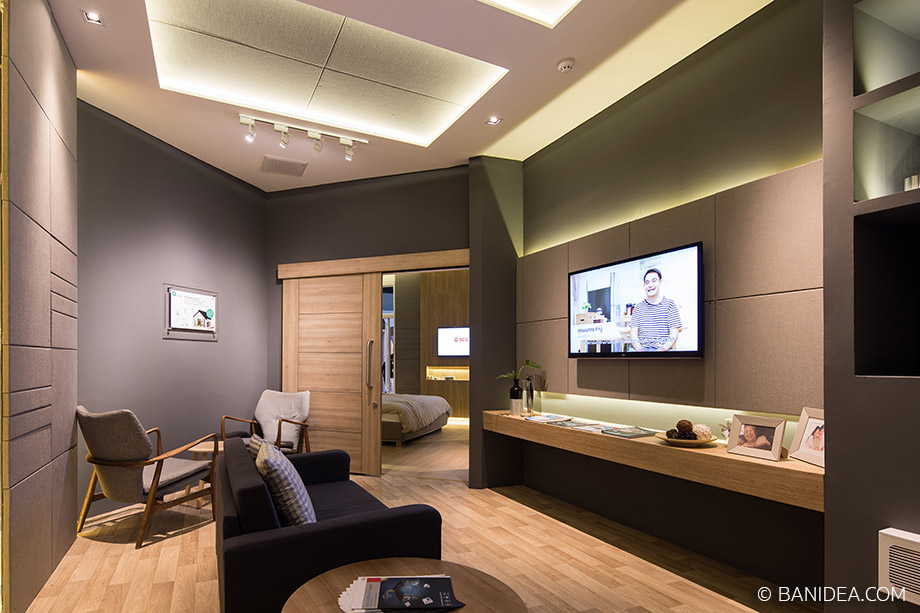

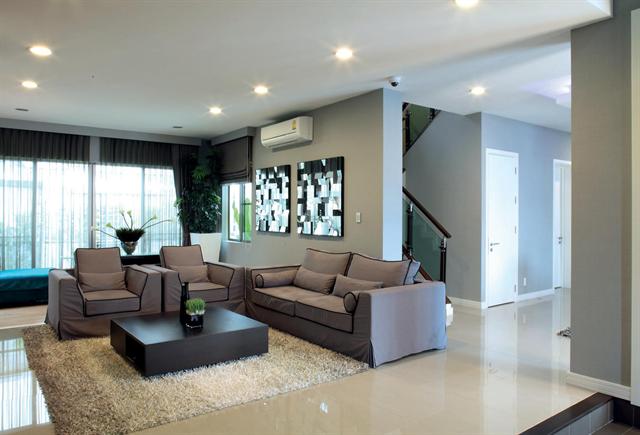

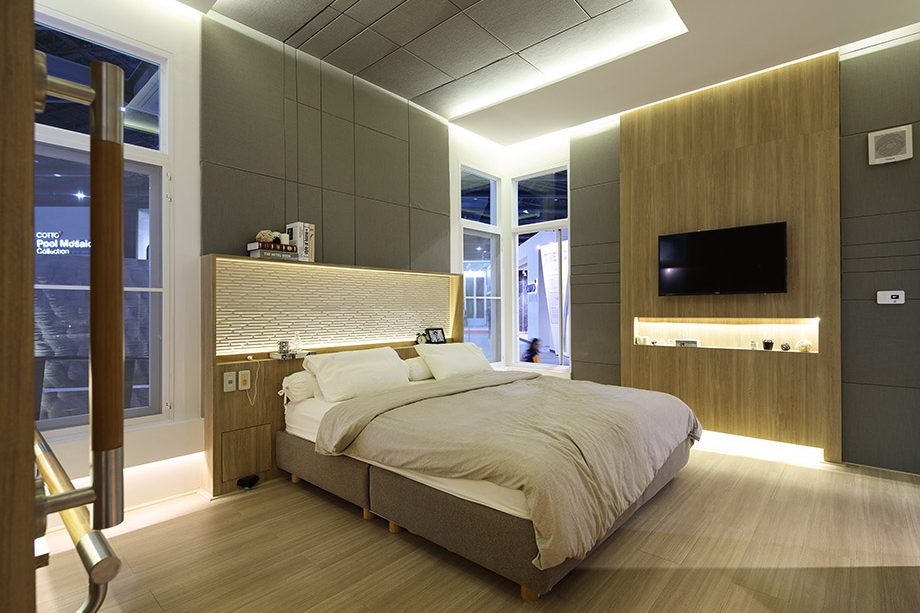

Application Example

Benefits

1 x
Faster
1 x
Lighter

Heat Protection (Rt)

SCG = 2.22 Rt
Brick Wall = 0.28 Rt

Acoustical Control (STC)

SCG = 53
Brick Wall = 45

  • 5 times faster construction time than brick and mortar wall.
  • 6 times lighter weight than brick and mortar wall.
  • Keep interior tempuratures at a comfortable level.
  • Save energy bills.

*Compared to brick and mortar wall

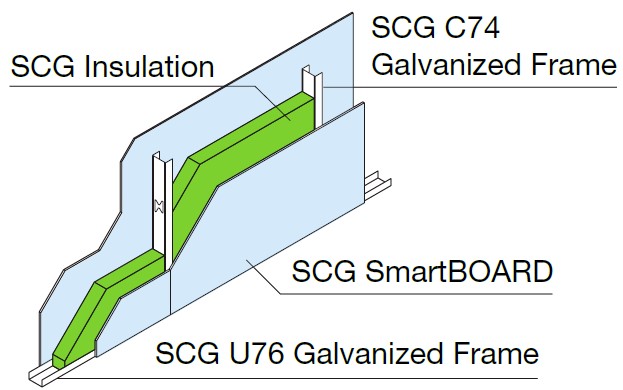

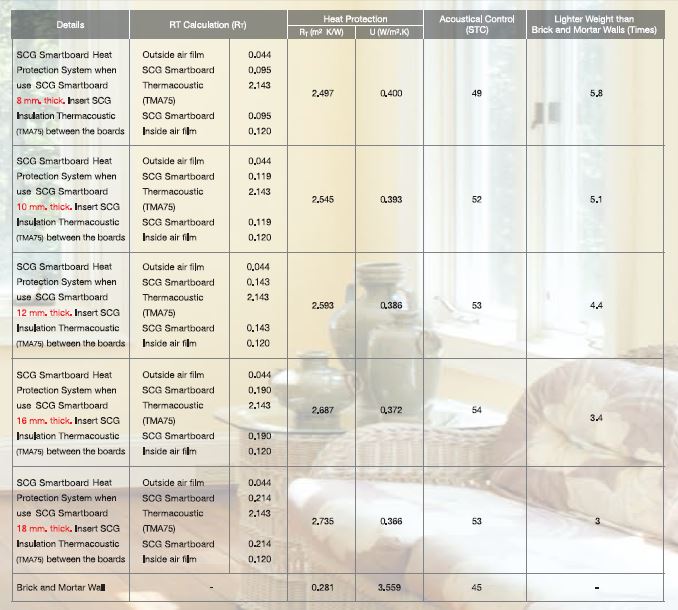

System Detail

Related Documents​

Products in this system

SCG SmartBOARD Squared Edge

8, 9, 10, 12, 14 mm. thick

SCG Fiber Cement Sheet for Wall - 4 inch Square Lining - Fiber Cement Board for wall

4-Inch Square Lining

8 mm. thick

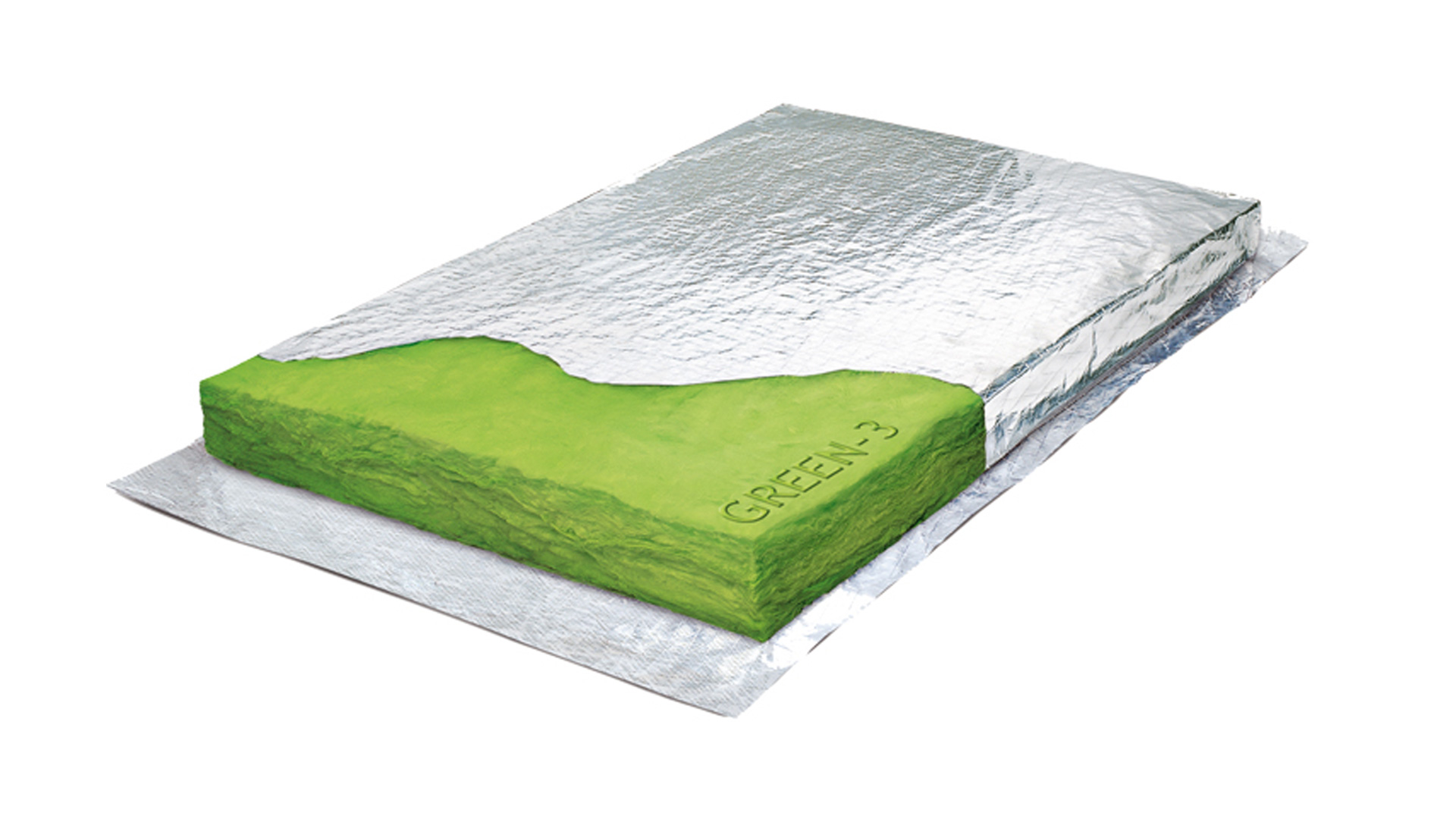

Fiberglass

SCG Insulation

Thermacoustic

SCG C74 Galvanized Frame

SCG Galvanized Frame

C74

SCG C74 Galvanized Frame

SCG Galvanized Frame

U76
