Fiber Cement Board
Fire Protection System
Peace-of-mind protection for your investment

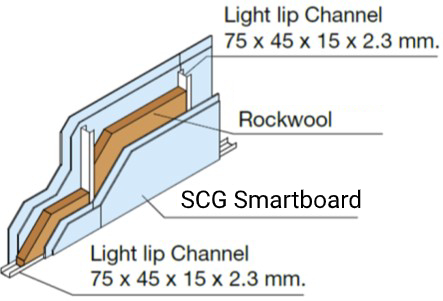

- Install SCG Smartboard 12 mm. with light lip channel. Fill the gap between the boards with SCG insulation HI-TEMP 3850 or SCG Insulation Rockwool.

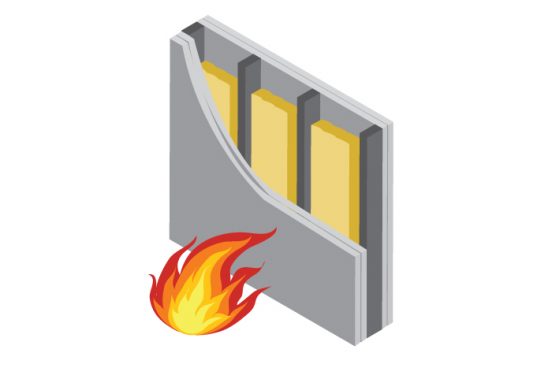

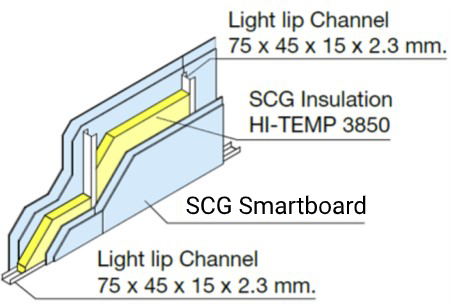

HI-TEMP 3850 System

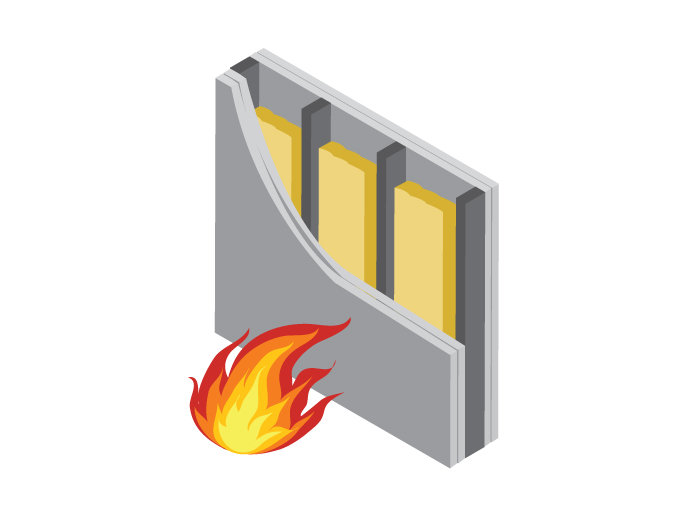

Rockwool System
Application
Fire protection is one of the most essential parts of many projects. SCG Fire Protection System ensures that your building satisfies fire resistance requirements and provides peace-of-mind and safety.
SCG Fire Protection System contains SCG Insulation HI-TEMP 3850 that ensures up to 105 minutes of fire resistance while SCG smartboard Fire Protection System containing Rockwool provides up to 150 minutes of fire-resistance.
This makes SCG Fire Protection System a smart solution for peace-of-mind and safety.
Application Guideline
- Hospital
- Factory
- Warehouse
Application Example
Benefits
HI-TEMP 3850 System
1
x
Faster
1
x
Lighter
Heat Protection (Rt)
SCG = 2.25 Rt
Brick Wall = 0.28 Rt
Fire Rating (Minutes)
SCG = 105
Brick Wall = 225
Rockwool System
1
x
Faster
1
x
Lighter
Heat Protection (Rt)
SCG = 2.20 Rt
Brick Wall = 0.28 Rt
Fire Rating (Minutes)
SCG = 150
Brick Wall = 45
- Provides peace-of-mind and safety
*Compared to brick and mortar wall

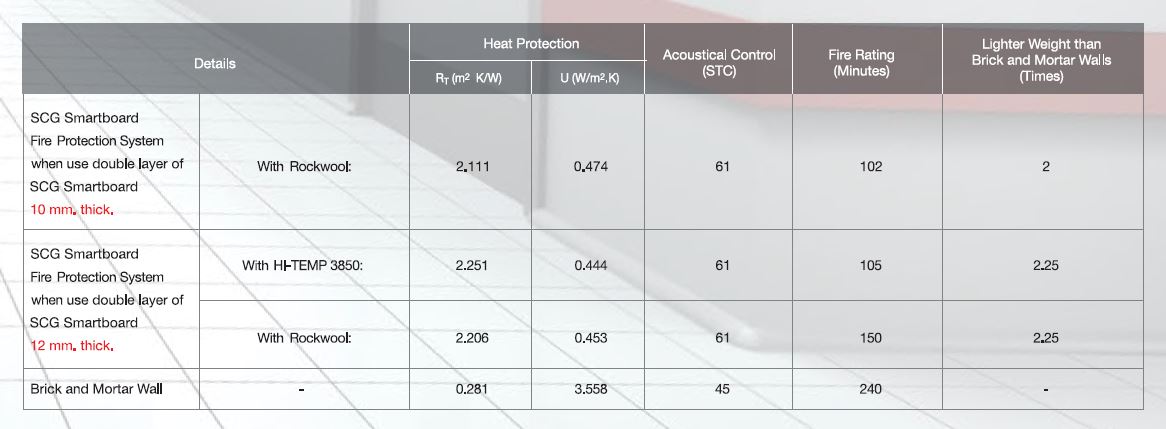

System Detail
Related Documents
Products in this system
SCG Smartboard Squared Edge
10, 12 mm. thick

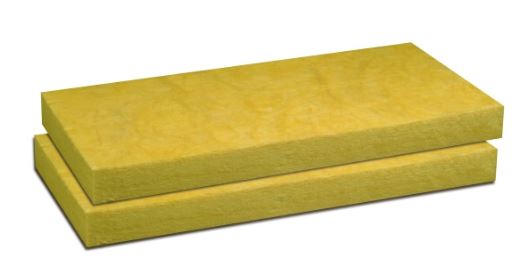

SCG Insulation HI-TEMP 3850
Insulation
Rockwool Insulation
Insulation
SCG Light Lip Channel
75 x 45 x 15 x 2.3 mm.
