SCG Decorative Wall Panel
Attractive, Long-Lasting Color with COLOR LOC
SCG Smartwood is an innovative wood substitute product made from superior SCG Portland Cement, Silica Sand, and Special Cellulose Fiber using high standardized processes (Autoclave Process). SCG Smartwood creates a natural, attractiveness and confident look.
Key Documents & Design Files
Previous slide
Next slide
New Arrival - Mar 2019
Product Option
Previous
Next
Colonial Series
A Natural Style of master carpentry with chiseled grooves. Every sheet is lathed with contour, so your home or your building is attractive, grand, and contemporarily crafted
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. |
|---|---|---|---|---|
| 200 | 3000 | 8 | 7.2 | 1.9 |
Color Available
Previous
Next
New England Series
Attractive and elegant with diligently chiseled grooves and simple patterns meticulously styled by master craftsmanship.
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. |
|---|---|---|---|---|
| 200 | 3000 | 8 | 7.2 | 1.9 |
Color Available
Previous
Next
Lap Siding Series
Beautifully smooth; no need to cover screw heads, so your walls are smooth. Suitable for home, buildings and projects that want a modern look with the warmth of natural wood.
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. | |
|---|---|---|---|---|---|
| Lap Siding V1 (Smooth surface; no grooves) | 180 | 3000 | 10 | 6.01 | 2.15 |
| Lap Siding V2 (Smooth surface; 4" grooves) | 236 | 3000 | 10 | 8.13 | 1.59 |
| Lap Siding V1 (Smooth surface; 2.5" grooves) | 236 | 3000 | 10 | 8.02 | 1.59 |
Color Available
Previous
Next

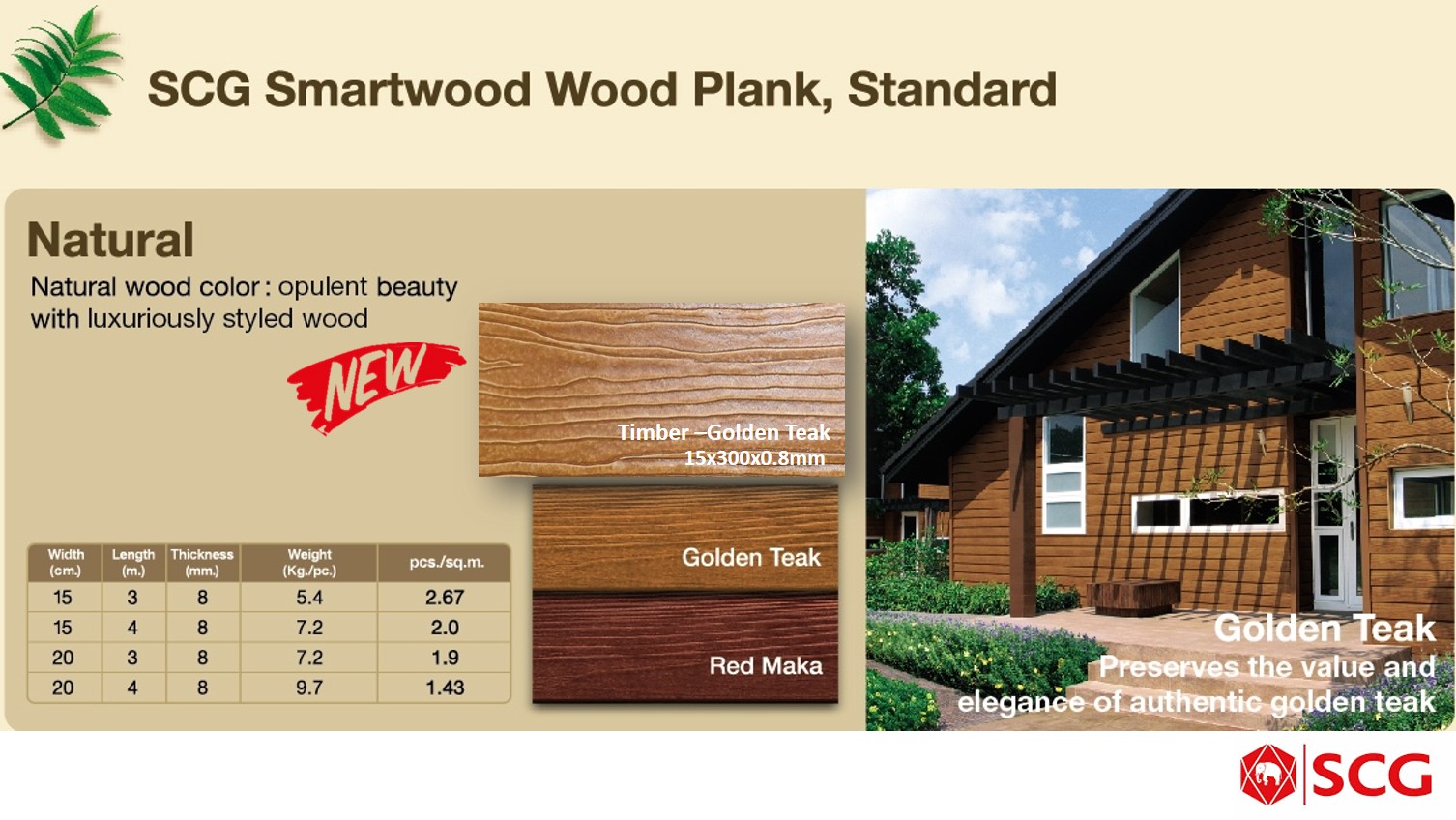

Natural Series
Natural wood color : opulent beauty with luxuriously styled wood
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. |
|---|---|---|---|---|
| 150 | 3000 | 8 | 5.4 | 2.67 |
| 150 | 4000 | 8 | 7.2 | 2.0 |
| 200 | 3000 | 8 | 7.2 | 1.9 |
| 200 | 4000 | 8 | 9.7 | 1.43 |
Color Available
Previous
Next
Primer Series
High quality primer color made from factory, ready to paint with water based acrylic paint.
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. |
|---|---|---|---|---|
| 150 | 3000 | 8 | 5.4 | 2.67 |
| 150 | 4000 | 8 | 7.2 | 2.0 |
| 200 | 3000 | 8 | 7.2 | 1.9 |
| 200 | 4000 | 8 | 9.7 | 1.43 |
Color Available
Previous
Next

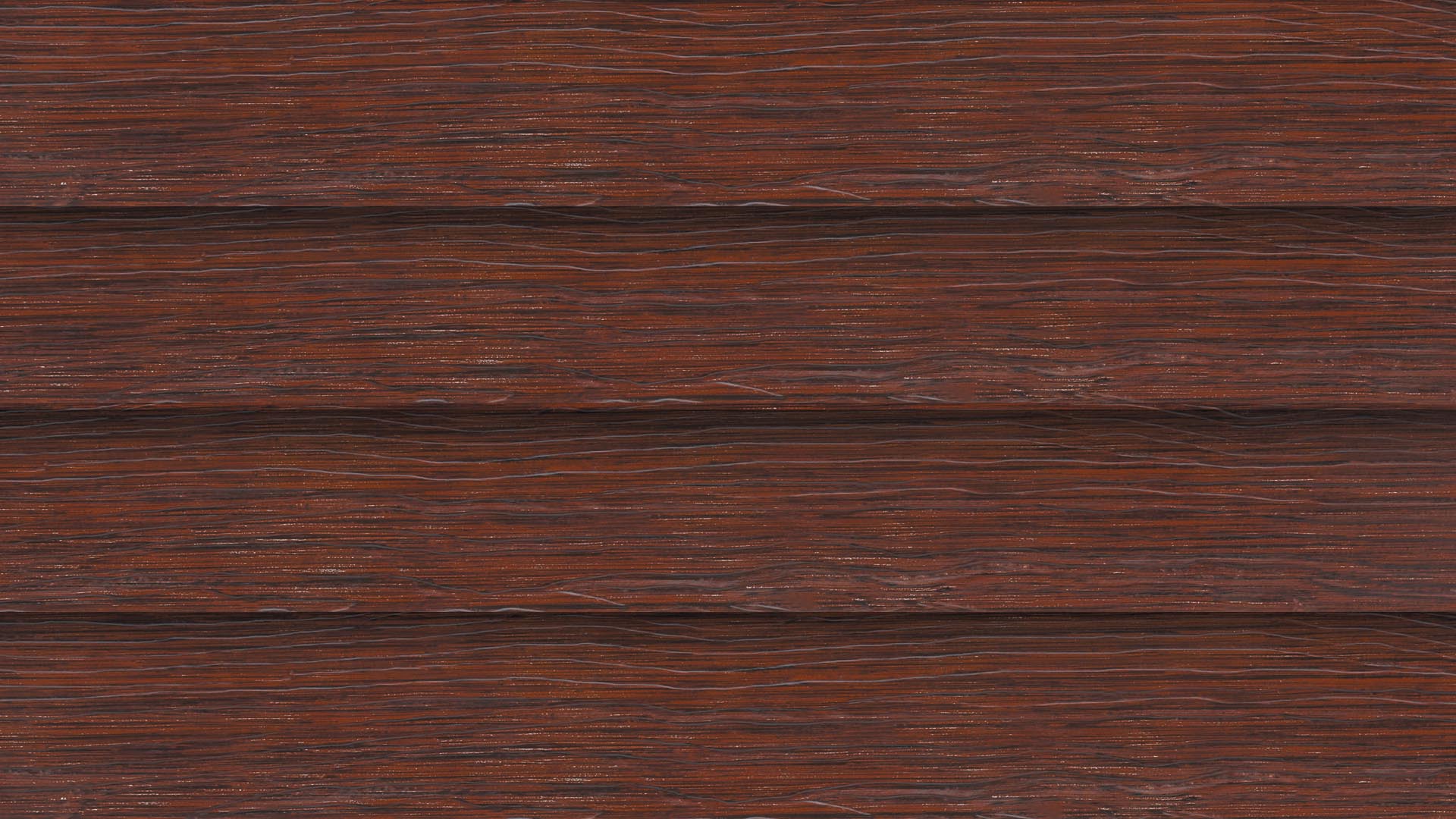

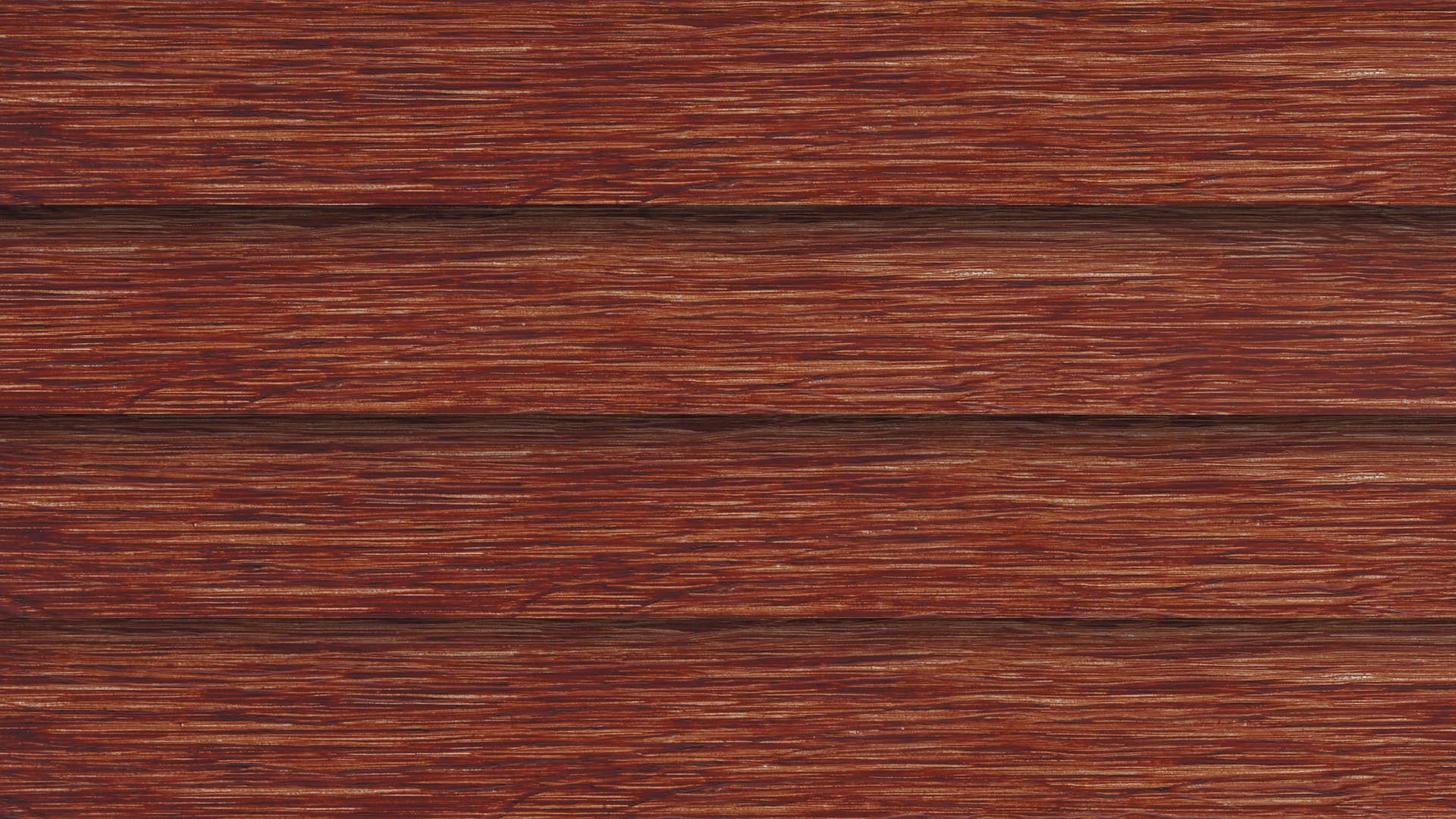

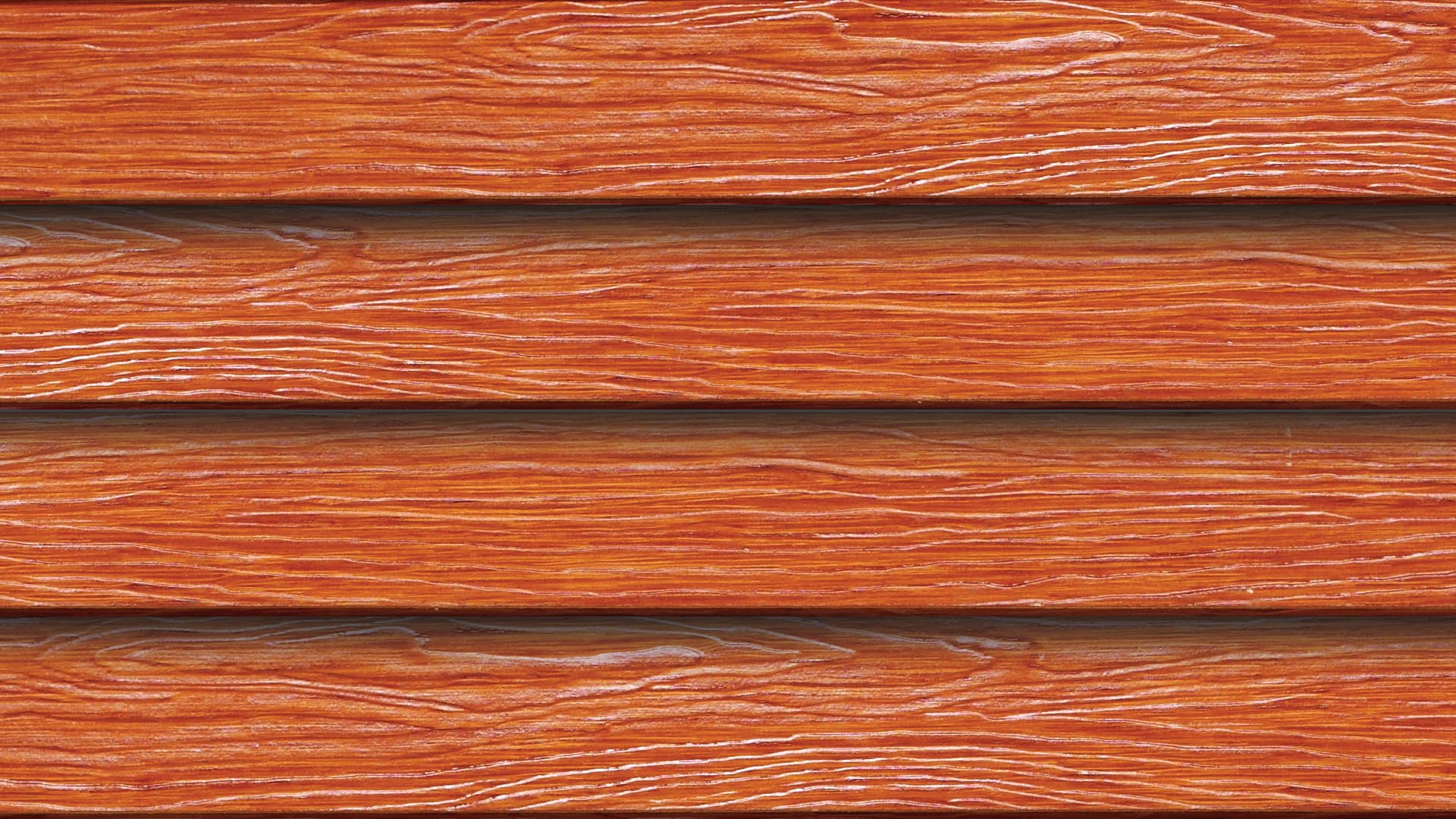

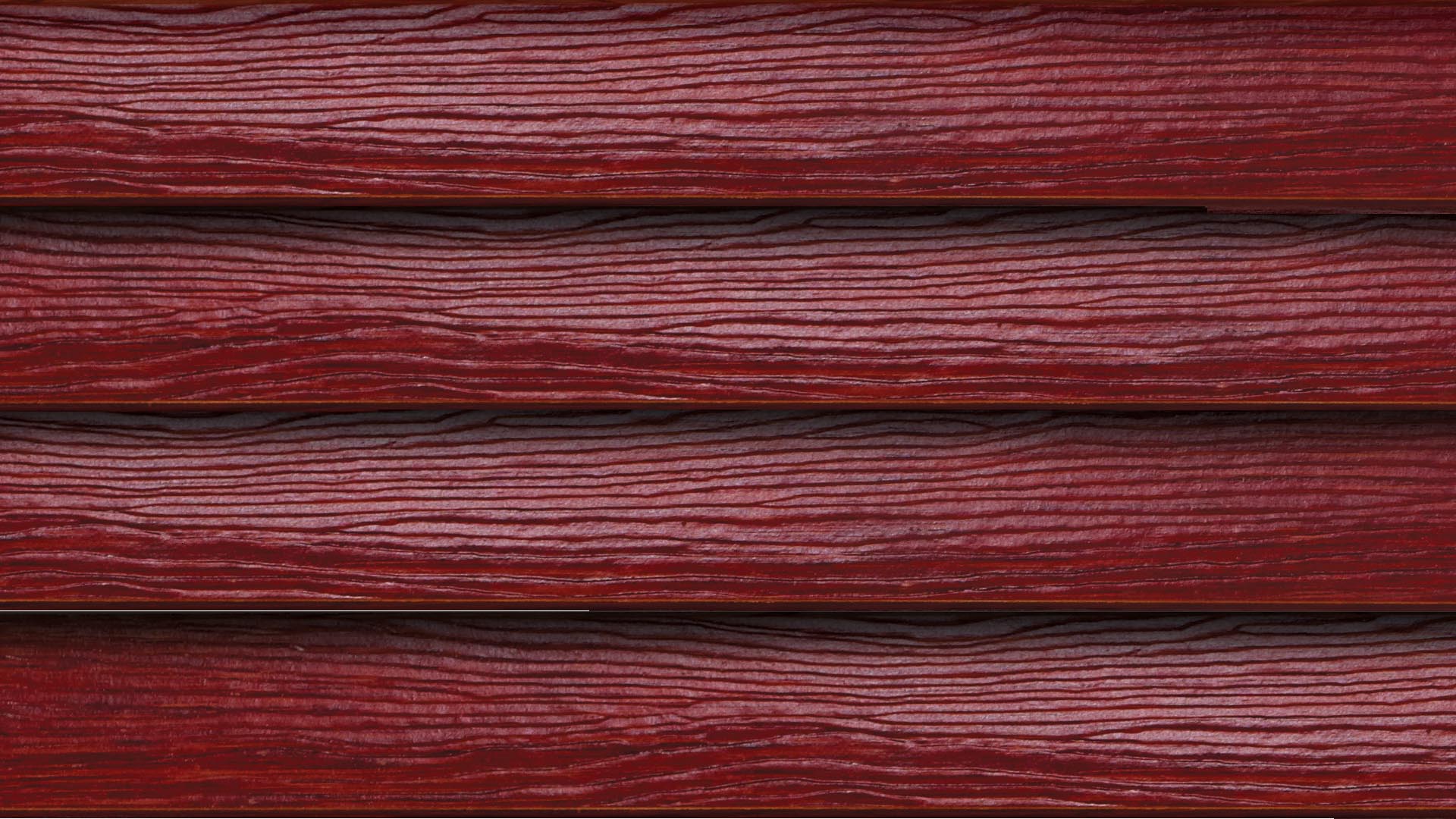

Wow Series
Attractive, outstanding and long lasting color. Containing 3 layers of vanish for three dimensional look that accentuates deep wood grain patterns for a unique look.
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. |
|---|---|---|---|---|
| 150 | 3000 | 8 | 5.4 | 2.67 |
| 150 | 4000 | 8 | 7.2 | 2.0 |
Color Available
Previous
Next
Uncolored Series
Grain patterned texture: paint with one coat of old cement primer and two coats of paint in the shade of your choice.
Product Size and Dimension
| Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. | |
|---|---|---|---|---|---|
| Timber (Deep Wood) : | 150 | 3000 | 8 | 5.4 | 2.67 |
| 150 | 4000 | 8 | 7.2 | 2.0 | |
| 200 | 3000 | 8 | 7.2 | 1.9 | |
| 200 | 4000 | 8 | 9.7 | 1.43 | |
| 230 | 3660 | 6.5 | 8.3 | 1.33 | |
| 230 | 3660 | 7.5 | 9.6 | 1.33 | |
| Teak Texture : | 150 | 3000 | 8 | 5.4 | 2.7 |
| 200 | 3000 | 8 | 7.2 | 1.9 |
Color Available
Previous
Next
Modeena Series
SCG Smartwood Decorative Wall Panel, Modeena series is a wood substitute made from advance technology to create innovative and modern wall design.
Product Size and Dimension
| Model | Width (mm.) | Length (mm.) | Thickness (mm.) | Weight (Kg./pc.) | pcs./sq.m. |
|---|---|---|---|---|---|
| Modeena M1 | 300 | 1500 | 25 | 10.40 | 2.42 |
| Modeena M2 | 300 | 1500 | 25 | 11.40 | 2.42 |
| Modeena M3 | 300 | 1500 | 23 | 11.90 | 2.42 |
| Modeena M4 | 300 | 1500 | 23 | 10.30 | 2.42 |
| Modeena M5 | 300 | 1500 | 25 | 12.30 | 2.42 |
| Modeena M1 | 300 | 3000 | 25 | 20.80 | 1.21 |
| Modeena M2 | 300 | 3000 | 25 | 22.80 | 1.21 |
| Modeena M3 | 300 | 3000 | 23 | 23.80 | 1.21 |
| Modeena M4 | 300 | 3000 | 23 | 20.60 | 1.21 |
| Modeena M4 | 300 | 3000 | 25 | 24.60 | 1.21 |
Color Available
Special Property
FIRM & FLEX TECHNOLOGY
FIRM special Properties
High Impact Strength
Composition of SCG Portland Cement, Silica and Special cellulose fiber developed by our laboratory
Water - Resistance
Long lasting even using in hot, humid, and strong raining weather condition according to JIS Standard A5420
Termite Resistant
Termite resistant from Portland cement material.
FLEX special Properties
Flexibility for various designs
SCG Smartboard provide flexibility for various designs to meet your specification.
Light Weight, Fast and Easy to Install
With only 30 kg. per sq.m. It can install easier and faster than conventional system.
Better Heat Resistance
SCG Smartboard can prevent heat from external environtment. Reducing energy consumption and answering green designs.
SUPERIORITY WITH COLOR LOC
Color Loc technology locks every molecule firmly into the SCG Smartwood fiber with a special spraying technique, developed especially for synthetic wood and submitted to a high temperature curing process to help lock the paint for a long lasting color. Colored Smartwood stays naturally attractive. And resembles authentic for a long period of time.
Application Guideline
- Home Decoration
- Residential Building Decoration
- Office Decoration

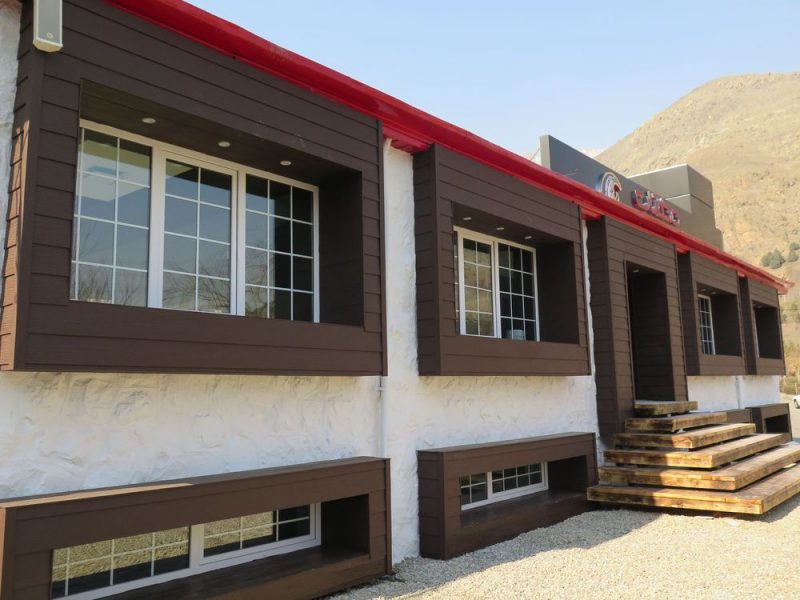

- Restaurant & Cafe’

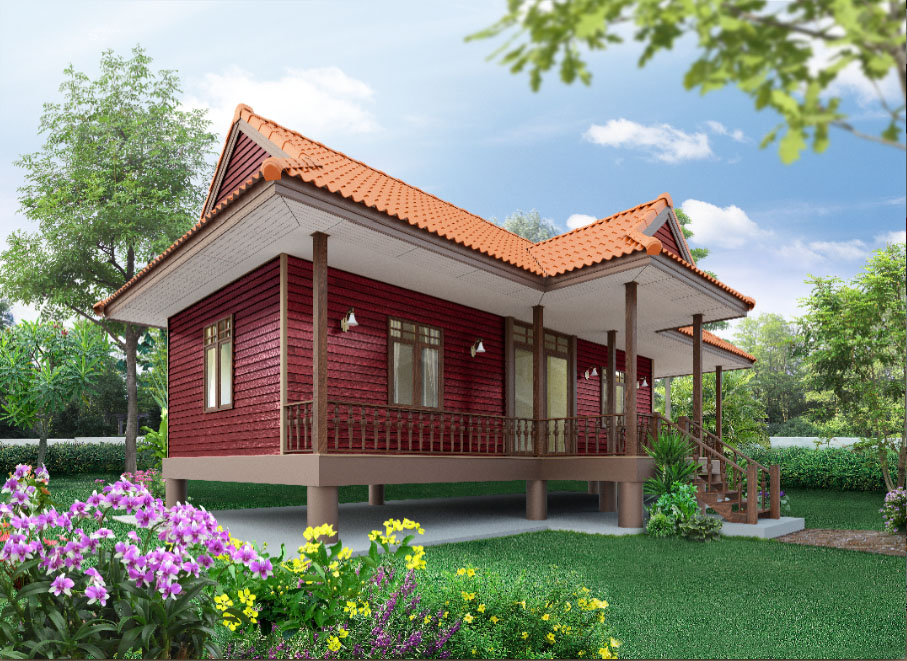

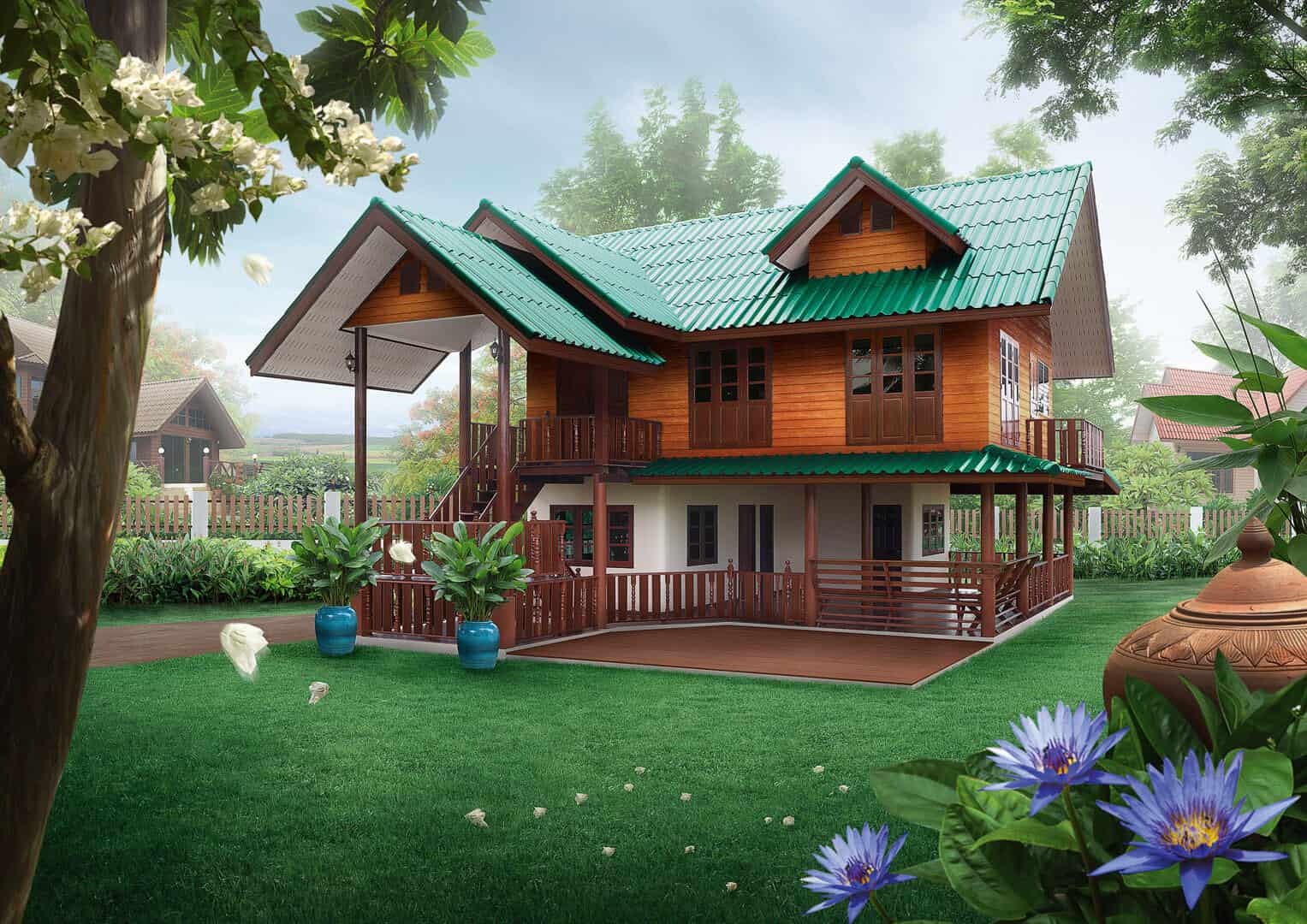

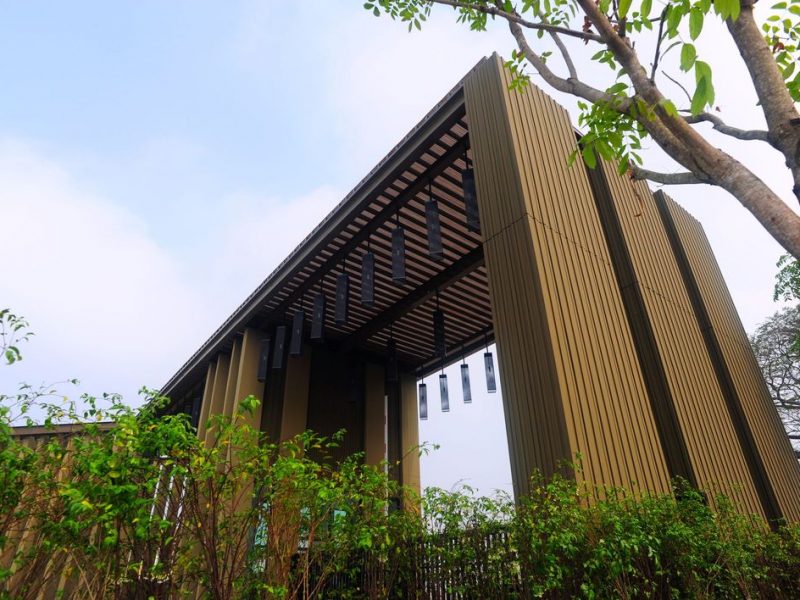

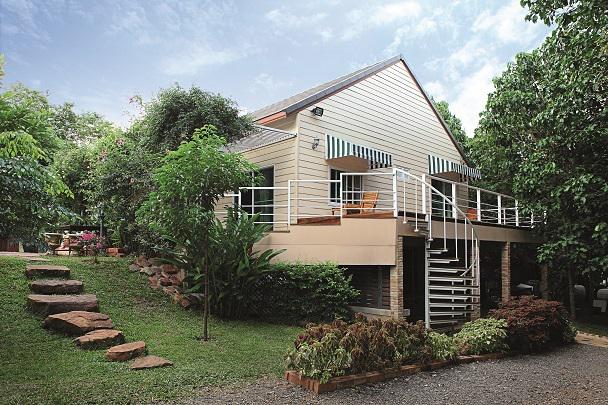

Application Example
Installation
